MAIN FUSELAGE

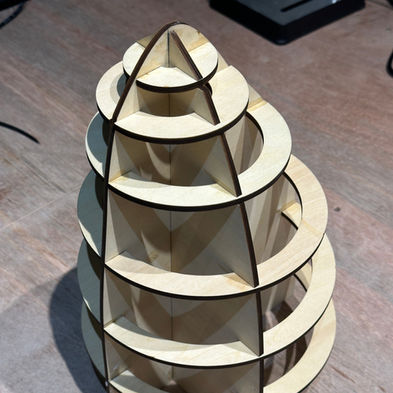

Frame
Made of laser-cut plywood and balsa wood
Outer Skin
Molded with 240g 3K carbon fiber and Kevlar
Support
Twin 25mm diameter carbon spars
Electronics
Avionics and electronics compartment
Battery, Esc, Flight computer, Receiver, Servo Sequencer, Light Sequencer
MAIN WING
Frame
Laser-cut plywood and balsa wood 3mm and 5mm
Wing panels
Molded with carbon fiber, fiberglass, and Kevlar.
Support
Twin 30mm Diameter carbon fiber spars through the wing to increase wing load
Engine
Plywood Engine mount and 3D printed carbon fiber shell (105mm EDF)
OVERALL ASSEMBLY
- 2500mm Wingspan | Twin 105mm EDF.
- 3D printed carbon fiber wingtips, Engine Nacelle
- Retractable landing gears.
- Window Decals.
- Customizable livery.
- Premium modeling paint.
VERTICAL & HORIZONTAL STABILIZER V1
Frame
Laser and balsa wood.
Panels
Molded with carbon fiber, fiberglass, and Kevlar.
Support
Double 15mm carbon fiber spars.
Updated version in the "Horizontal & Vertical Stabilizer" under the 787-9 dropdown bar.
ADDITIONAL IMAGES
Horizontal Stabilizers
787-9 progress...
- Dual 25kg servo for control surfaces
- Kevlar layer sandwiched between two layers of carbon fiber
- Servo stand implemented into balsa wood frame
